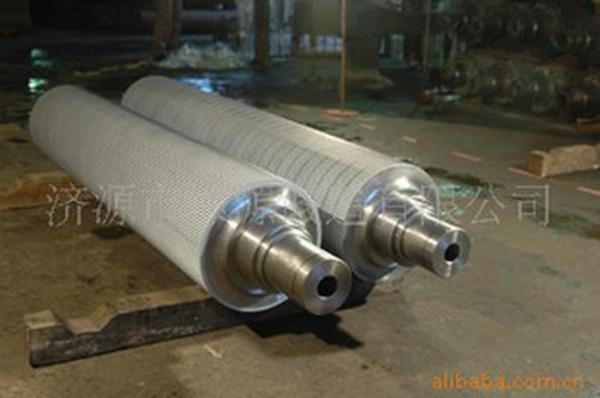

High Pressure Carbon Steel Corrugated Forming Roller / Cast Iron Roller

Specifications:

Technical Parameters:

Corrugated rollers include in the upper corrugated roller and lower corrugating rollers, roller upper and lower surfaces both are tooth shape, two rollers matching meshing assembly. Lower corrugating rollers is active roller, motor driven run with low corrugated roller rotation by the slow device. The upper corrugated roller is driven roller, relying on the roller gears of upper and lower rollers under the transmission mesh with each other.In order to make the corrugated base paper forming bettwen upper and lower corrugated rollers, the upper corrugated roller must be pressured. So the upper corrugated roll not only around the rotation axis of itself, but also can go along the up and down corrugated roller line attachment direction.

Currently most manufacturers adopt composite processing, aftermid frequeney induction hardeningnitride or chrome plated, nitriding thickness of 0.5 ~ 0.6mm, plating chromic layer thickness of 0.10 ~ 0.15mm, chrome plated aftermid frequeney induction is main. The high quality corrugated rolles are made by soild forgings.

Applications:

Corrugated roller is commonly used to papermaking machinery and is the most important part of the corrugated paper edition production equipment and is an important key parts the single machine.The material are 42CrMo, 48CrMo, 45#, ect.

Competitive Advantage:

Strict quality control

Competitive price

Just-in-time delivery

Specialist services

Quality certificate:ISO9001:2008

Company Profile:

Jiyuan City Kunyuan Forging Co., Ltd. is a specialized manufacture company, which produces large and medium-sized shafts, die plates, rings, modules, rollers, oil drilling stabilizers, centrifugal cast pipe molds, flanges and other forgings as well as fine machining products.

Geographical Location:

our company is established in 2006, which locates in the beautiful tourist and industrial city--Jiyuan City, Henan Province, China. It covers an area of 20,000 square meters, with capital asserts of RMB 23 million, registered capital of 2.5 million, with annual turnover of 50 million, which is collected of forging and machining integration export enterprise.

Forging and Machining Equipment

There are forging, mechanical processing cooperative enterprises and CNC processing base in our company.

In the forging workshop, there are many sets of heavy forging equipment, such as 2000 tons hydraulic press machine, 15 tons forging operator, platform heating furnace, annealing furnace, tempering furnace, etc.

In the machining workshop, there are lots of heavy machining equipment such as heavy horizontal lathes, deep hole drilling, boring machines, and grinding machines, etc.

In the CNC processing base, there are CNC lathes, Jiatai vertical machining center, NC slotting machine, grinders and other ancillary equipment, etc.

Technical Ability:

Our company has rich technological force, new products R&D center and experienced technicians and  engineers from military enterprise, owning ISO 9001:2008 Certificate from Quality Management System. Perfect quality assurance system to be in under control from raw material to finished products, so as to ensure the quality of the products and traceability.

Main Products and Production Capacity:

The main products are large and medium-sized shafts, die plates, rings, modules, rollers, oil drilling, stabilizers,centrifuge pipe dies, flanges and other forgings as well as fine machining products. Meanwhile, we

also undertake a variety of small parts, dies, welding products such as precision machining and manufacturing

1. the production capacity: Single weighs 8 tons forging, metallurgical equipment, oil drilling
2. the production of steel: including high carbon steel, alloy steel, carbon tool steel, alloy tool steel,roll steel,  tool steel, heat-resistant steel, stainless steel, bearing steel and some high-alloy tool steel.
3. the production specifications:

    Shaft forging production specifications up to φ700mm
    Roll forging production specifications up to φ600mm

    Die plate forging production specifications up φ1400mm
    Class size ring forgings produced up to φ1500mm
    Module production specifications forging cross-sectional area of up to φ550mm or rectangular cross-            section corresponding Casting class, Corrugated forging production specifications up to φ600mm.

Product Marketing:

Emphasizing on quality and honesty, Jiyuan City Kunyuan Forging Co., Ltd. always wants to make profit for our clients. We set up close strategic partnership with Surrounding brothers manufacturers such as steel mill, forging mill , machining mill, heat-treating mill, especially Zhong yuan Special Steel Co., Ltd. ---the famous large military enterprise. Moreover we has sold the products all over the world especially in American, Asian and European markets. It is also your ideal co-operative partner.

Client Satisfaction

Being a customer-centric firm, we ensure to deliver a defect-less array of products to our old and new clients. All the offered products are manufactured in conformity with the international quality standards. Further more, the range is offered by us within market-leading prices in the prevailing market. To meet the wide requirements of the customers, we offer on-site support and customized solutions for the customers. Meanwihle, we also test the offered range at various parameters before the final delivery so as to eliminate the chances of defects in it.

Why Us

We have established a strong foothold in this competitive market by offering superior-quality forged Bars& Shafts, Rollers, Flanges & Modules and Stabilizers. Owing to our ethical business strategies and transparent policies, we have been able to stay ahead of the competitors. Some of the other factors behind our incredible success are mentioned below:
1.Constantly effort to improve the functional efficiency of the products
2.Continuous improvement of work processe to reach maximum customer satisfaction
3.Efficient engineers adept with the latest technologies
4.Strong market network
5.Quick delivery and better reporting system to inform customer regularly to plan their imports
6.Industry-leading price
